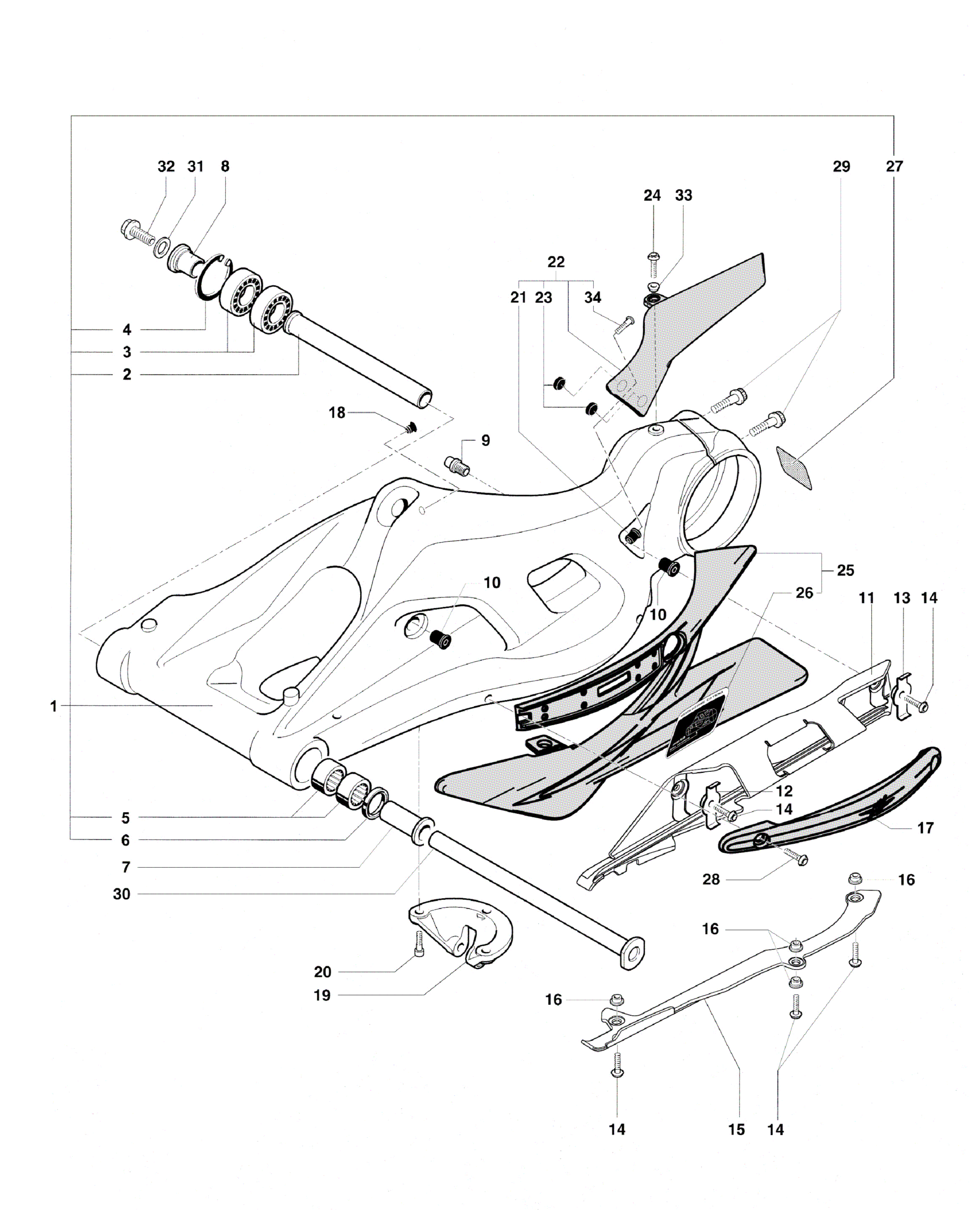

| 1 |
8AA0B3614
|
REAR FORK
|
1 |
• |
€
1603.25
|
|
|
| 2 |
800084872
|
SPACER, SWINGARM BEARING
|
1 |
• |
€
33.05
|
|
|
| 3 |
800084938
|
BALL BEARING, SWINGARM, RIGH SIDE, D25XD
|
1 |
• |
€
34.65
|
|
|
| 4 |
800084939
|
CIRCLIP, J42X1,75 V
|
1 |
• |
€
3.55
|
|
|
| 5 |
800084936
|
NEEDLE BEARING, SWINGARM, LEFT SIDE, D25
|
1 |
• |
€
13.30
|
|
|
| 6 |
800084937
|
RETAINER, SWINGARM, FRONT SIDE, D25XD32X
|
1 |
• |
€
7.60
|
|
|
| 7 |
800084859
|
BUSH, SWINGARM, LEFT SIDE
|
1 |
• |
€
31.25
|
|
|
| 8 |
800084873
|
FORK RH BUSH
|
1 |
• |
€
18.65
|
|
|
| 9 |
8000B2762
|
BRACKET, REAR BRAKE, SCREW
|
1 |
• |
€
6.25
|
|
|
| 10 |
800048245
|
CUSHION, SCREW, M6X1 L16
|
1 |
• |
€
2.30
|
|
|
| 11 |
8000B3622
|
CHAIN GUIDE, UPPER
|
1 |
• |
€
29.75
|
|
|
| 12 |
800087463
|
METAL BRACKET, CHAIN GUIDE, REAR SIDE
|
1 |
• |
€
9.45
|
|
|
| 13 |
800089300
|
METAL BRACKET, CHAIN GUIDE, FRONT SIDE
|
1 |
• |
€
9.45
|
|
|
| 14 |
8B00B2672
|
SCREW, M6X11,7X21
|
1 |
• |
€
0.90
|
|
|
| 15 |
8000B3623
|
CHAIN GUIDE, BOTTOM
|
1 |
• |
€
17.70
|
|
|
| 16 |
800090391
|
SPACER, D15,5XD8XD6,2XE3,8
|
1 |
• |
€
5.00
|
|
|
| 17 |
8000B3629
|
PROTECTOR, SWINGARM
|
1 |
• |
€
27.15
|
|
|
| 18 |
8000A4539
|
CAP, SWINGARM, D9,5
|
1 |
• |
€
0.70
|
|
|
| 19 |
800087441
|
SUPPORT, SHOCK ABSORBER
|
1 |
• |
€
101.05
|
|
|
| 20 |
8D00B2691
|
SCREW, TCEIF M10X1,25X31
|
1 |
• |
€
4.00
|
|
|
| 21 |
800091022
|
BUSH, SCREW, M4X0,7
|
1 |
• |
€
1.85
|
|
|
| 22 |
8000B5319
|
UPPER CHAIN COVER
|
1 |
• |
€
39.05
|
|
|
| 23 |
800090979
|
CAP, UPPER GUIDE CHAIN
|
1 |
• |
€
2.30
|
|
|
| 24 |
8A00B2672
|
SCREW, M6X11,7X12
|
1 |
• |
€
0.00
|
|
|
| 25 |
8000B3626
|
CHAIN GUIDE, LEFT SIDE
|
1 |
• |
€
30.25
|
|
|
| 26 |
8000B4015
|
STICKER, CHAIN ADJUSTER
|
1 |
• |
€
4.00
|
|
|
| 27 |
8000A2734
|
DECAL
|
1 |
• |
€
4.90
|
|
|
| 28 |
8B00B2688
|
SCREW, TCEIF M6X1X16
|
1 |
• |
€
1.95
|
|
|
| 29 |
8000B2752
|
SCREW, WHEEL HUB, SPECIAL
|
1 |
• |
€
6.60
|
|
|
| 30 |
800091655
|
AXLE, SWINGARM
|
1 |
• |
€
102.15
|
|
|
| 31 |
8000B2728
|
WASHER, SWINGARM, D15,2XD28XE1
|
1 |
• |
€
1.40
|
|
|
| 32 |
8000B2751
|
SCREW, TEF M15X1,25X22
|
1 |
• |
€
13.30
|
|
|
| 33 |
80A090392
|
SPACER
|
1 |
• |
€
1.50
|
|
|
| 34 |
8A0090901
|
SCREW, M4X13,7
|
10 |
• |
€
1.25
|
|
|
