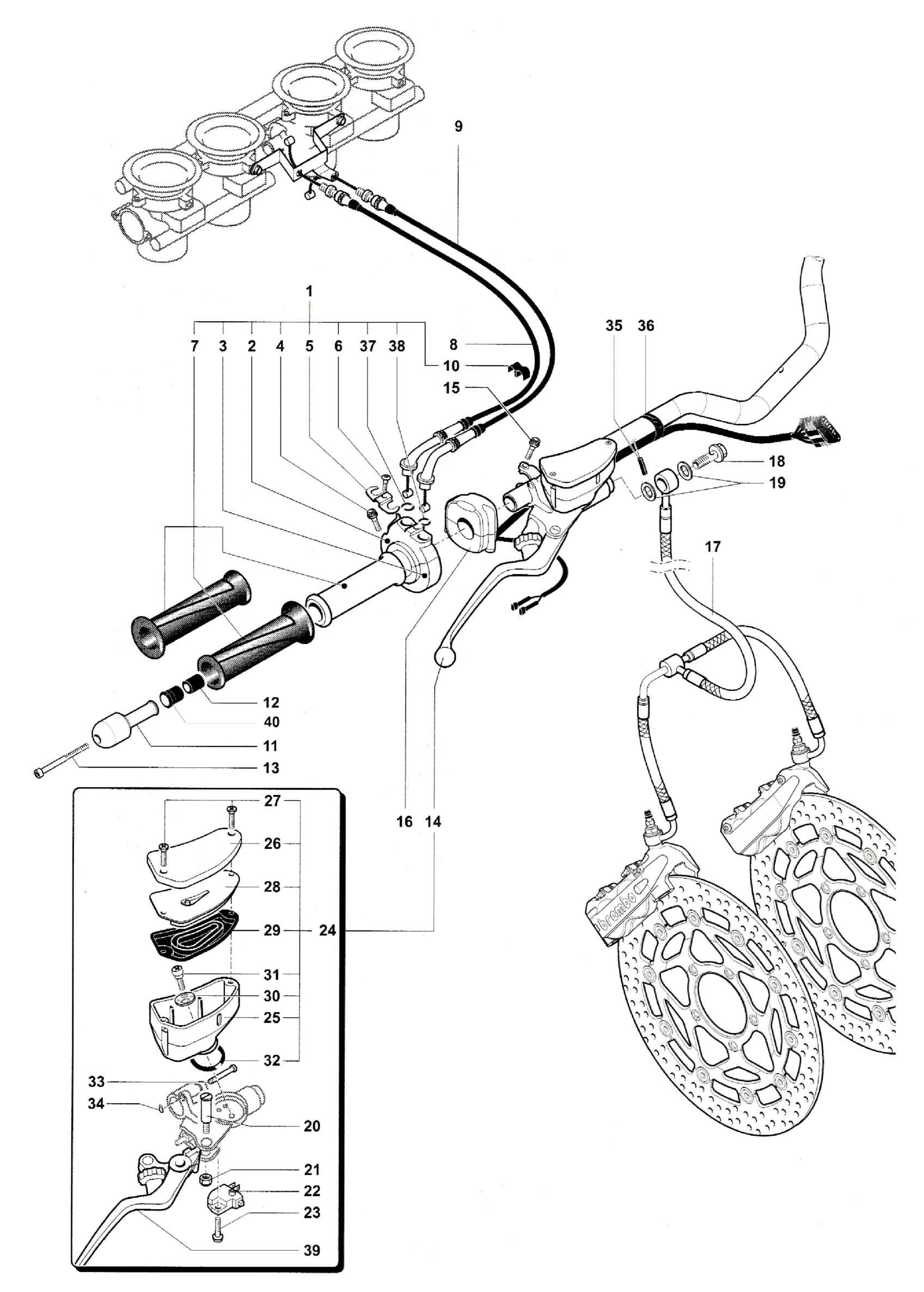

| 1 |
8000B2141
|
THROTTLE CONTROL
|
1 |
• |
€
91.85
|
|
|
| 2 |
80A092894
|
SUPPORT, UPPER, THROTTLE CABLE
|
1 |
• |
€
95.60
|
|
|
| 3 |
80A090265
|
SUPPORT, BOTTOM, THROTTLE CABLE
|
1 |
• |
€
48.80
|
|
|
| 4 |
8E00B2688
|
SCREW, TCEIF M6X22 RP
|
1 |
|
€
1.60
|
|
|
| 5 |
800090266
|
SUPPORT, STEEL, THROTTLE CABLE
|
1 |
• |
€
3.65
|
|
|
| 6 |
800093297
|
SCREW, TTEI M5X8
|
1 |
• |
€
1.60
|
|
|
| 7 |
8000B2140
|
THROTTLE CONTROL
|
1 |
• |
€
34.95
|
|
|
| 8 |
8000B4537
|
CABLE, THROTTLE OPENING, B4
|
1 |
• |
€
36.55
|
|
|
| 9 |
8000B4538
|
CABLE, THROTTLE CLOSING, B4
|
1 |
• |
€
36.55
|
|
|
| 10 |
800092630
|
CLAMP, THROTTLE CABLE
|
1 |
• |
€
1.70
|
|
|
| 11 |
80B0A4425
|
COUNTERWEIGHT
|
1 |
• |
€
38.95
|
|
|
| 12 |
800090890
|
NUT, WITH RUBBER COVER, BALANCE WEIGHT
|
1 |
• |
€
7.85
|
|
|
| 13 |
60ND02524
|
SCREW, TCEI M6X1X95
|
1 |
• |
€
2.75
|
|
|
| 14 |
8000B3452
|
FRONT BRAKE PUMP
|
1 |
• |
€
323.15
|
|
|
| 15 |
8F00B2688
|
SCREW, TCEIF M6X25 RP
|
1 |
• |
€
1.70
|
|
|
| 16 |
8000B4568
|
SWITCH, IGNITION, RIGHT SIDE
|
1 |
• |
€
62.00
|
|
|
| 17 |
8000B3850
|
PIPE, OIL, FRONT BRAKE, B4
|
1 |
• |
€
89.90
|
|
|
| 18 |
80A091692
|
SPECIAL SCREW, OIL BRAKE PIPE, 3
|
1 |
• |
€
10.00
|
|
|
| 19 |
800021480
|
WASHER, COPPER, D14XD10,2XE1
|
1 |
• |
€
0.90
|
|
|
| 20 |
800093299
|
LEVER PIN
|
1 |
• |
€
4.35
|
|
|
| 21 |
800093300
|
LEVER NUT
|
1 |
• |
€
2.40
|
|
|
| 22 |
800070864
|
STOP SWITCH
|
1 |
• |
€
28.25
|
|
|
| 23 |
800070865
|
SWITCH SCREW
|
1 |
• |
€
3.75
|
|
|
| 24 |
80A098722
|
COMPLETE OIL TANK
|
1 |
• |
€
62.65
|
|
|
| 25 |
800097121
|
FRONT BRAKE FLUID RESERVOIR
|
1 |
• |
€
21.70
|
|
|
| 26 |
80A082728
|
PLUG
|
1 |
• |
€
29.20
|
|
|
| 27 |
800093313
|
SCREW M4X16
|
1 |
• |
€
2.40
|
|
|
| 28 |
800093302
|
DIAPHRAGM
|
1 |
• |
€
5.60
|
|
|
| 29 |
800093303
|
GASKET
|
1 |
• |
€
32.35
|
|
|
| 30 |
800098962
|
SEPARATOR
|
1 |
• |
€
5.80
|
|
|
| 31 |
8000A1295
|
SEPARATOR SCREW
|
1 |
• |
€
9.00
|
|
|
| 32 |
800093306
|
GROMMET
|
1 |
• |
€
2.85
|
|
|
| 33 |
800082695
|
PIN, SUPPORT
|
1 |
• |
€
4.55
|
|
|
| 34 |
800094643
|
WASHER, SPECIAL, D3,4
|
1 |
• |
€
4.20
|
|
|
| 35 |
6AND55034
|
PIN, HANDLEBAR, D4,4XD2,8XL8 BRUTALE
|
1 |
• |
€
0.90
|
|
|
| 36 |
800092248
|
CLAMP, RUBBER, L82
|
1 |
• |
€
1.70
|
|
|
| 37 |
8000A2181
|
RING, RUBBER, D7X1,5
|
1 |
• |
€
1.40
|
|
|
| 38 |
8000A2180
|
RING, RUBBER, D6X1,5
|
1 |
• |
€
1.40
|
|
|
| 39 |
80A0A3823
|
FRONT BRAKE LEVER
|
1 |
• |
€
110.15
|
|
|
| 40 |
8000A4426
|
CAP, RUBBER, BALLANCE WEIGHT
|
1 |
• |
€
4.80
|
|
|
