| 1 |
8000B3415
|

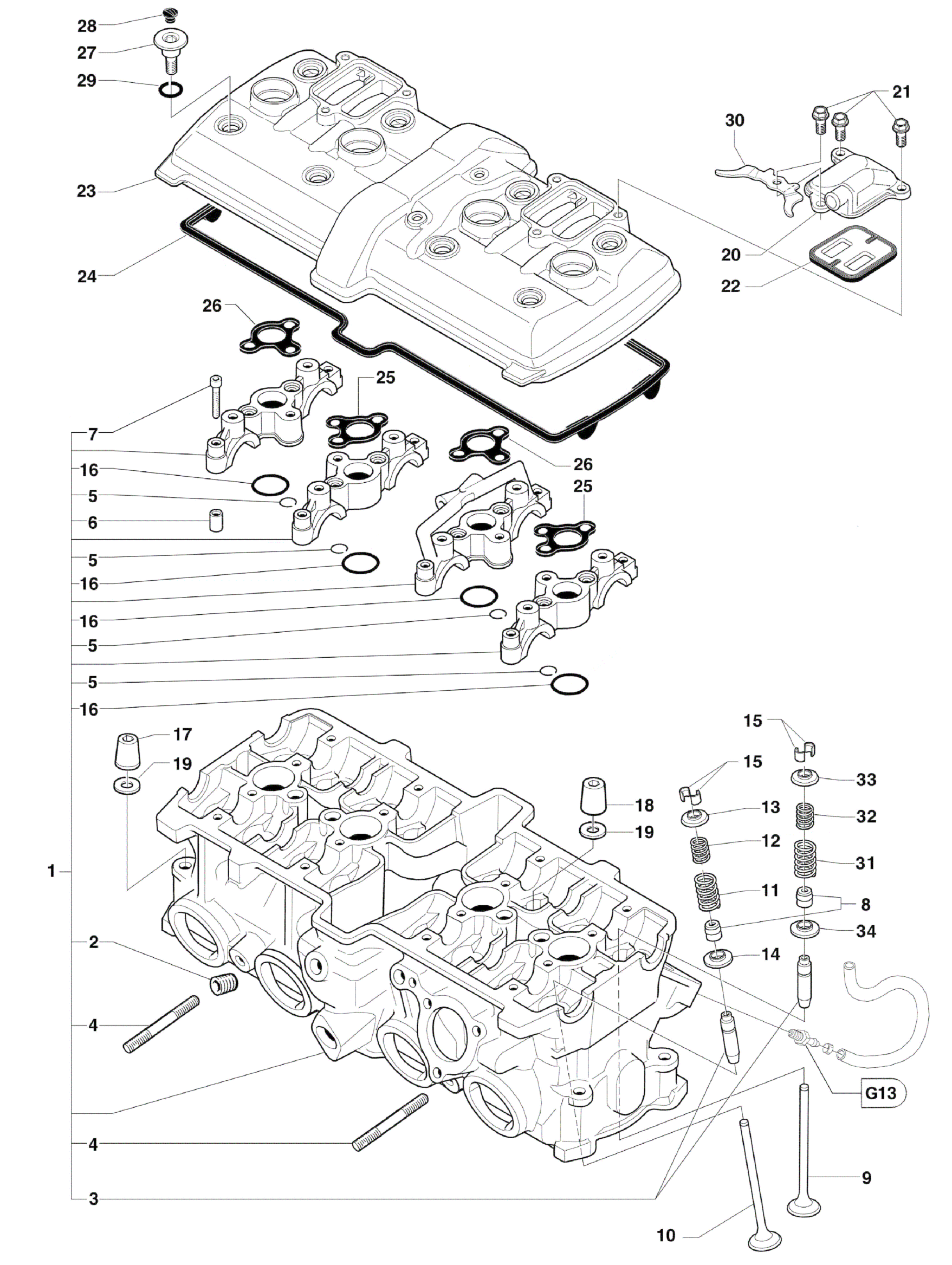

CYLINDER HEAD ASSEMBLY
|
1 |
• |
|
€
2236.90
|
|
|
| 2 |
800069769
|
CONICAL PLUG EI M14X1
|
1 |
• |
|
€
3.10
|
|
|
| 3 |
8B0081228
|
VALVE GUIDE 0.050 MM
|
|
• |
2 |
€
0.00
|
|
|
| 3 |
8A0081228
|
VALVE GUIDE 0.025 MM
|
|
• |
1 |
€
0.00
|
|
|
| 4 |
8000B2768
|
STUD BOLT
|
1 |
|
|
€
9.00
|
|
|
| 5 |
800023108
|
OR2037 T1
|
1 |
• |
|
€
1.50
|
|
|
| 6 |
800051549
|
PIN D8-D6
|
1 |
• |
|
€
2.85
|
|
|
| 7 |
800085071
|
SCREW M6X35
|
1 |
• |
|
€
2.40
|
|
|
| 8 |
800065814
|
INTAKE AND EXHAUST GASKET
|
1 |
• |
|
€
6.35
|
|
|
| 9 |
80A0A1356
|
VALVE (INTAKE)
|
1 |
• |
|
€
55.10
|
|
|
| 10 |
80A097919
|
VALVE (EXHAUST)
|
1 |
• |
|
€
90.95
|
|
|
| 11 |
800098670
|
EXTERNAL VALVE SPRING
|
1 |
• |
|
€
13.55
|
|
|
| 12 |
800098671
|
INTERNAL VALVE SPRING
|
1 |
• |
|
€
9.05
|
|
|
| 13 |
8000A3732
|
UPPER CAP
|
1 |
• |
|
€
4.25
|
|
|
| 14 |
8000A3733
|
LOWER CAP
|
1 |
• |
|
€
3.70
|
|
|
| 15 |
800092433
|
COTTER VALVE 15 JAP
|
1 |
• |
|
€
2.85
|
|
|
| 16 |
800087752
|
ORING, LARGE
|
1 |
• |
|
€
1.70
|
|
|
| 17 |
800081547
|
NUT, ESPECIAL DO CABE OTE 1
|
1 |
• |
|
€
14.45
|
|
|
| 18 |
8000A8182
|
NUT, ESPECIAL DO CABE OTE 2
|
1 |
• |
|
€
15.10
|
|
|
| 19 |
800069156
|
WASHER, 18X10,5X2 FLAT, BLACK ZINC
|
1 |
• |
|
€
1.60
|
|
|
| 20 |
80D0B3946
|
COVER, EXHAUST INTAKE AIR, B4
|
1 |
• |
|
€
46.20
|
|
|
| 21 |
8C00B2681
|
SCREW, TEF M6X1 CH8 L14
|
1 |
• |
|
€
0.80
|
|
|
| 22 |
8000A2270
|
VALVE, INTAKE AIR
|
1 |
• |
|
€
48.45
|
|
|
| 23 |
8B00B3272
|
HEAD COVER
|
1 |
• |
|
€
292.90
|
|
|
| 24 |
8000B4056
|
GASKET, CYLINDER HEAD COVER
|
1 |
• |
|
€
33.15
|
|
|
| 25 |
8000A1938
|
GASKET, SPARK PLUG, (CYLINDER POSITION 1
|
1 |
• |
|
€
5.60
|
|
|
| 26 |
8000A1939
|
GASKET, SPARK PLUG, (CYLINDER POSITION 2
|
1 |
• |
|
€
5.60
|
|
|
| 27 |
8000B2759
|
HEAD CUP FIXING SCREWS COVER
|
1 |
• |
|
€
7.50
|
|
|
| 28 |
8000A8989
|
CAP, SCREW, CYLINDER HEAD COVER
|
1 |
• |
|
€
1.25
|
|
|
| 29 |
800023113
|
OR3043 T2
|
1 |
• |
|
€
0.55
|
|
|
| 30 |
8000A8326
|
SUPPORT, SPARK PLUG CABLE, B4
|
1 |
• |
|
€
2.90
|
|
|
